Features
Respect for the planet
Highly efficient compared to electric resistance or gas water heaters, complements Solar PV systems, runs only on electricity, and uses the natural refrigerant R290.
Lower running costs
The heat pump technology results in a 70-79% reduction in electricity used to heat the same volume of water compared to an electric-resistance water heater.*
Expansive operating range
Performance in most Australian climates from -7ºC to 45ºC ambient air temperature.
Adapts to your life
Use the SmartHQ™ app on your smartphone to easily select from five modes to best suit your needs, allowing you to adjust heating to lower-cost periods, minimise energy use when you're on vacation, or prioritise solar energy to reduce grid-supply if you have Solar PV.
Technologies

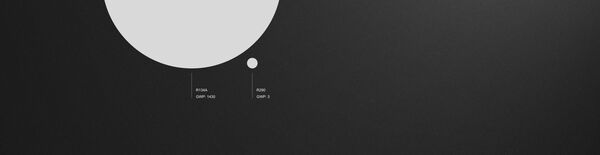

Low GWP Refrigerant
Our Heat Pump Water Heater uses R290 which has a global warming potential (GWP) of 3. Many heat pumps use R134A. R290 has a global warming potential that is 476 times lower than R134A. As many refrigerants are strong greenhouse gases, the use of refrigerants with low GWP is seen as a way to minimise the effect of refrigeration systems on global warming.
Eco Mode
Eco mode optimizes the benefits of Solar PV and lower cost, time-of-use electricity.The Solar optimisation mode (PV) and time-of use mode (HC) receive a communication signal from an energy management control system (if you have an existing Solar PV system). Alternatively, a timer is used to set heating to the low cost periods of a time-of-use tariff.
Longevity
Using patented technology with a triple layer protection creates a long lasting, acid and alkali corrosion resistant inner tank. The inner tank is tested to over 160,000 cycles to ensure durability over the expected lifetime.
Connected
Built in Wi-Fi module and SmartHQ™ allows control of the appliance from anywhere. Change between five user modes at the tip of your fingers by opening SmartHQ™ on your smartphone.
Specifications

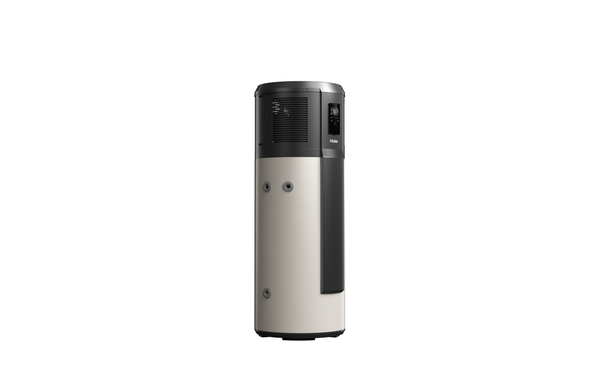

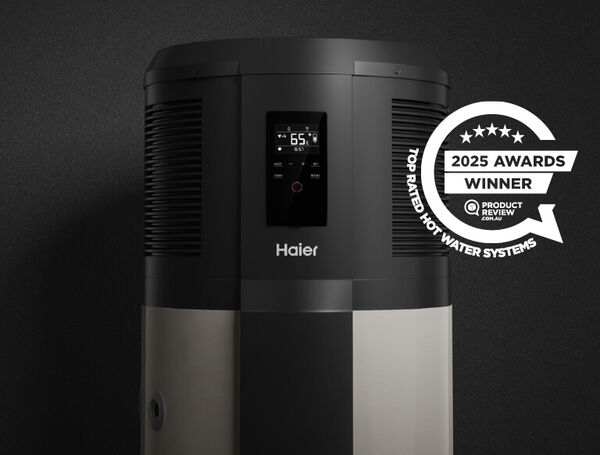

Hot Water Heat Pump, 200L
HP200M1U1
Capacity
Total water capacity: 195L
Product dimensions
Depth: 630mm
Height: 1658mm
Packaged depth: 695mm
Packaged height: 1940mm
Packaged weight: 116kg
Packaged width: 736mm
Product weight: 91kg
Product weight (filled): 286kg
Width: 600mm
Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year
Capacity
Total water capacity: 195L
Features
Anode type: Magnesium
Ingress protection: IPX4
Installation
Expansion control valve (max pressure): 600kPa
Pressure limiting valve setting (max pressure): 500kPa
Pressure temperature relief valve: 700kPa
Performance
Ambient temperature working limits (Heat Pump only): -7°C to 45°C
Ambient temperature working limits (Total appliance): -7°C to 45°C
Heat pump refrigerant mass: 0.34kg
Heat pump refrigerant type: R290
Maximum output water temperature (Heat pump only): 65°C
Maximum output water temperature (Total appliance): 75°C
Noise emissions: 43dB
Power requirements
Electric element power input: 1.5kW
Maximum power input (Heat pump input): 0.75kW
Maximum power input (Total appliance): 2.25kW
Rated Power input (Heat pump): 0.43kW
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 630mm
Height: 1658mm
Packaged depth: 695mm
Packaged height: 1940mm
Packaged weight: 116kg
Packaged width: 736mm
Product weight: 91kg
Product weight (filled): 286kg
Width: 600mm
Rebates
STC entitlements: Refer to attached brochure
Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year
Download resources
General
-
User Guide
Monoblock, GeneralFiles-HaierHVACAU
-
Product Brochure
Monoblock, GeneralFiles-HaierHVACAU
-
Heat Pump Water Heater Manufacturer's Warranty
Monoblock, GeneralFiles-HaierHVACAU
Installation
-
Installation Manual
Monoblock, InstallationManuals-HaierHVACAU

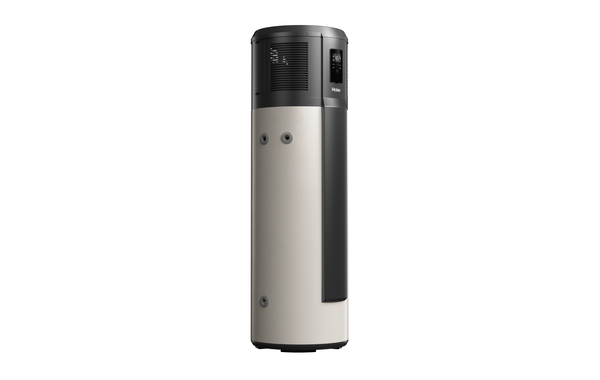

Hot Water Heat Pump, 250L
HP250M1U1
Capacity
Total water capacity: 246L
Product dimensions
Depth: 630mm
Height: 1951mm
Packaged depth: 695mm
Packaged height: 2250mm
Packaged weight: 128kg
Packaged width: 736mm
Product weight: 106kg
Product weight (filled): 352kg
Width: 600mm
Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year
Capacity
Total water capacity: 246L
Features
Anode type: Magnesium
Ingress protection: IPX4
Installation
Expansion control valve (max pressure): 600kPa
Pressure limiting valve setting (max pressure): 500kPa
Pressure temperature relief valve: 700kPa
Performance
Ambient temperature working limits (Heat Pump only): -7°C to 45°C
Ambient temperature working limits (Total appliance): -7°C to 45°C
Heat pump refrigerant mass: 0.34kg
Heat pump refrigerant type: R290
Maximum output water temperature (Heat pump only): 65°C
Maximum output water temperature (Total appliance): 75°C
Noise emissions: 43dB
Power requirements
Electric element power input: 1.5kW
Maximum power input (Heat pump input): 0.75kW
Maximum power input (Total appliance): 2.25kW
Rated Power input (Heat pump): 0.43kW
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 630mm
Height: 1951mm
Packaged depth: 695mm
Packaged height: 2250mm
Packaged weight: 128kg
Packaged width: 736mm
Product weight: 106kg
Product weight (filled): 352kg
Width: 600mm
Rebates
STC entitlements: Refer to attached brochure
Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year
