Features
Scalability
Add modules based on the building's cooling requirements. Up to 16 modules can be coupled under a single controller in order to reach 2080 kW of capacity.
Efficient design
More compact than traditional, non-modular systems, allowing for more efficient use of the available area.
Quiet operation
Our anti-vibration pads, insulation, and high efficiency brushless DC motor create a low sound profile during operation.
BMS compatible
Our Modular Chillers can fully integrate into building management systems, allowing for minimal disruption to your operations.
Technologies
R32 LOWER-IMPACT REFRIGERANT
Our Modular Chillers use a next-generation R32 refrigerant, which carries heat efficiently and has 33% of the global warming potential of R410A.
SIMPLE MAINTENANCE
Modules can be isolated for repair or maintenance without affecting the entire cooling system, making maintenance more cost-effective and reducing downtime.
Specifications

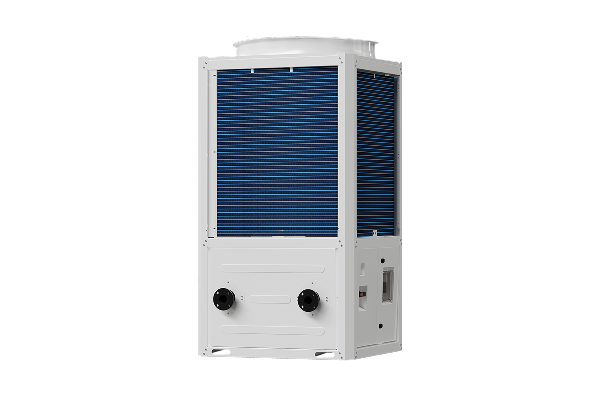

Air Cooled Modular Chiller R32 R/C, 65kW
CA0070HANH
Capacity
Cooling capacity (kW): 65kW
Heating capacity (kW): 71kW
Consumption
COP: 4.4
EER: 2.95
Product dimensions
Depth: 1260mm
Height: 2260mm
Net weight: 500kg
Width: 1210mm
Warranty
Parts and labour: 1 year
Capacity
Cooling capacity (kW): 65kW
Heating capacity (kW): 71kW
Consumption
COP: 4.4
EER: 2.95
Features
Auto restart:
Blue fin coils:
Compressor quantity: 1
Compressor type: DC INV. SCROLL
Electronic expansion device:
Heat pump:
Inverter controlled compressor:
Motor type: DC motor
Refrigerant factory charge: 10kg
Self diagnostics:
Shell and tube heat exchanger:
Installation
Pipe size liquid: DN50
Performance
Airflow: 25400 m3/h
DC inverter:
Outdoor sound power SWL: 88dBA
Outdoor sound pressure SPL: 71dBA
R32 Refrigerant:
Working temperature cooling: -20°C to +50°C
Power requirements
Minimum circuit amps: 34.5MCA
Power phase: Three phase
Power supply: 400/3/50
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 1260mm
Height: 2260mm
Net weight: 500kg
Width: 1210mm
Warranty
Parts and labour: 1 year
Download resources
Installation
-
Installation Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU
-
Specification Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU

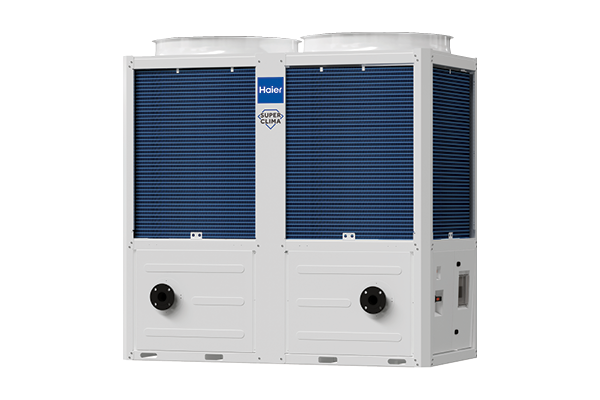

Air Cooled Modular Chiller R32 R/C, 100kW
CA0100HANH
Capacity
Cooling capacity (kW): 100kW
Heating capacity (kW): 100kW
Consumption
COP: 5
EER: 3.5
Product dimensions
Depth: 1255mm
Height: 2260mm
Net weight: 910kg
Width: 2260mm
Warranty
Parts and labour: 1 year
Capacity
Cooling capacity (kW): 100kW
Heating capacity (kW): 100kW
Consumption
COP: 5
EER: 3.5
Features
Auto restart:
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
Electronic expansion device:
Heat pump:
Inverter controlled compressor:
Motor type: DC motor
Refrigerant factory charge: 22kg
Self diagnostics:
Shell and tube heat exchanger:
Installation
Pipe size liquid: DN65
Performance
Airflow: 41000 m3/h
DC inverter:
Outdoor sound power SWL: 88dBA
Outdoor sound pressure SPL: 70dBA
R32 Refrigerant:
Working temperature heating: -20°C to +50°C
Power requirements
Minimum circuit amps: 46.2MCA
Power phase: Three phase
Power supply: 400/3/50
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 1255mm
Height: 2260mm
Net weight: 910kg
Width: 2260mm
Warranty
Parts and labour: 1 year
Download resources
Installation
-
Installation Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU
-
Specification Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU
Air Cooled Modular Chiller R32 R/C, 130kW
CA0140HANH
Capacity
Cooling capacity (kW): 130kW
Heating capacity (kW): 142kW
Consumption
COP: 4.6
EER: 3.03
Product dimensions
Depth: 1255mm
Height: 2260mm
Net weight: 910kg
Width: 2260mm
Warranty
Parts and labour: 1 year
Capacity
Cooling capacity (kW): 130kW
Heating capacity (kW): 142kW
Consumption
COP: 4.6
EER: 3.03
Features
Auto restart:
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
Electronic expansion device:
Heat pump:
Inverter controlled compressor:
Motor type: DC motor
Refrigerant factory charge: 22kg
Self diagnostics:
Shell and tube heat exchanger:
Installation
Pipe size liquid: DN65
Performance
Airflow: 50800
DC inverter:
Outdoor sound power SWL: 91dBA
Outdoor sound pressure SPL: 72dBA
R32 Refrigerant:
Working temperature cooling: -20°C to +50°C
Power requirements
Minimum circuit amps: 68.23MCA
Power phase: Three phase
Power supply: 400/3/50
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 1255mm
Height: 2260mm
Net weight: 910kg
Width: 2260mm
Warranty
Parts and labour: 1 year
Download resources
Installation
-
Installation Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU
-
Specification Guide (English)
Modular Heat Pump Chiller R32, InstallationManuals-HaierHVACAU
