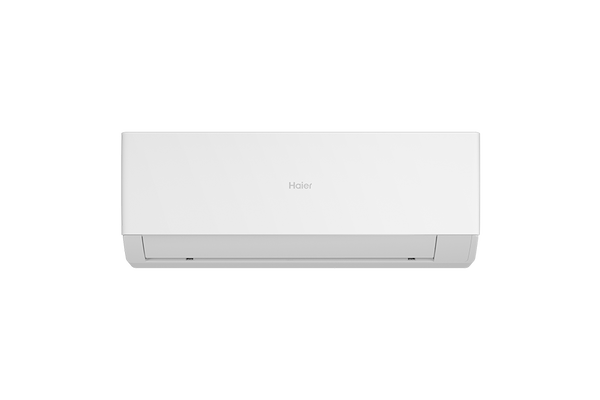

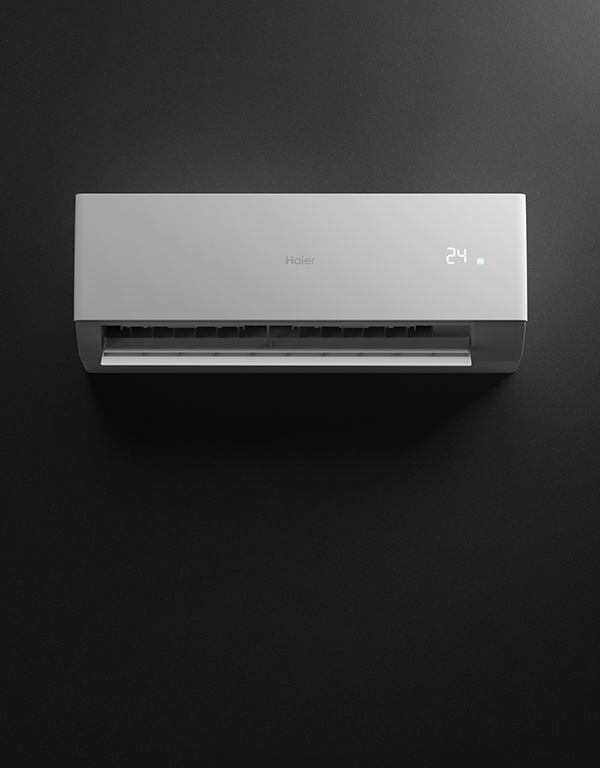

Quartz, hero

Quartz

Wall Mounted Split System

Get a quote

Product Set

Outdoor Unit
Indoor Unit
Controller

Features

airwave

Even Airflow

Enjoy an even temperature throughout the room. 3D Airflow directs air horizontally as well as vertically, for consistently spread heating and cooling.

mode_cool

Turbo Cooling

With the Turbo function the motor and fan work at a higher frequency, so you can enjoy a cool room within a much shorter time.

volume_mute

Whisper Quiet

Enjoy consistent temperature as well as peace and quiet. Our wall mounted split system air conditioning / heat pump are very quiet and can operate from as low as 21 decibels.

square_foot

Easy Installation

Designed for easy installation, Haier Quartz air conditioners / heat pump come with simple positioning Specifications. The control board and motor are also easily accessible for fast maintenance.

Technologies

UV Protect

UV Protect

UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne pathogens, delivering clean air to your room.*

*Independent testing has found 91.47% elimination of the H3N2 virus in a 30m2 closed room and 92.78% of Staphylococcus aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed.

Coanda Plus Airflow

Coanda Plus Airflow

Coanda Plus airflow technology sends warm or cool air further, for maximum comfort throughout the room.

Self-Clean

Self-Clean

The Self-clean function freezes the indoor and outdoor coil with moisture in the air and flushes away dirt through melting, helping to ensure healthy airflow from your air conditioner.

WiFi

WiFi

We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioning / heat pump from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.

Specifications

Quartz Hi Wall, 2.5kW

AS25QCEHRA-SET

AS25QCEHRA-SET, hero
Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.57 / 4.52

EER: 4.81 / 4.73

HSPF-RES (Hot/Average/Cold): 4.913 / 4.543 / 4.042

Star-Cool (Hot/Average/Cold): 10.0 / 7.0 / 7.5

Star-Heat (Hot/Average/Cold): 3.0 / 3.0 / 2.5

TCSPF-RES (Hot/Average/Cold): 12.196 / 8.799 / 9.388

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS25QCEHRA-SET
Quartz Hi Wall, 2.5kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.57 / 4.52

EER: 4.81 / 4.73

HSPF-RES (Hot/Average/Cold): 4.913 / 4.543 / 4.042

Star-Cool (Hot/Average/Cold): 10.0 / 7.0 / 7.5

Star-Heat (Hot/Average/Cold): 3.0 / 3.0 / 2.5

TCSPF-RES (Hot/Average/Cold): 12.196 / 8.799 / 9.388

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS25QCEHRA

Indoor unit weight: 10kg

Outdoor unit model: 1U25MAEFRA

Outdoor unit weight: 30kg

Pipe length maximum: 15m

Pipe size gas: 9.52mm

Pipe size liquid: 6.35mm

Performance

Airflow: 195L/S

DC inverter:

Indoor sound pressure SPL: 40 / 36 / 32 / 21dBA

Outdoor sound power SWL: 61dBA

Outdoor sound pressure SPL: 51dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: -15°C to +24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Hi Wall, 3.5kW

AS35QCEHRA-SET

AS35QCEHRA-SET, hero
Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.30 / 4.26

EER: 4.22 / 4.17

HSPF-RES (Hot/Average/Cold): 5.004 / 4.542 / 3.968

Star-Cool (Hot/Average/Cold): 8.5 / 6.0 / 7.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-RES (Hot/Average/Cold): 10.253 / 7.910 / 8.612

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS35QCEHRA-SET
Quartz Hi Wall, 3.5kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.30 / 4.26

EER: 4.22 / 4.17

HSPF-RES (Hot/Average/Cold): 5.004 / 4.542 / 3.968

Star-Cool (Hot/Average/Cold): 8.5 / 6.0 / 7.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-RES (Hot/Average/Cold): 10.253 / 7.910 / 8.612

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.02kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS35QCEHRA

Indoor unit weight: 10kg

Outdoor unit model: 1U35MAEFRA

Outdoor unit weight: 30kg

Pipe length maximum: 15m

Pipe size gas: 9.52mm

Pipe size liquid: 6.35mm

Performance

Airflow: 210L/S

DC inverter:

Indoor sound pressure SPL: 40 / 36 / 32 / 22dBA

Outdoor sound power SWL: 63dBA

Outdoor sound pressure SPL: 52dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to 46°C

Working temperature heating: ‍-15°C to 24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Hi Wall, 5kW

AS50QDEHRA-SET

AS50QDEHRA-SET, hero
Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 6kW

Consumption

COP: 4.05 / 4.02

EER: 4.03 / 4.00

HSPF-RES (Hot/Average/Cold): 5.067 / 4.302 / 3.670

Star-Cool (Hot/Average/Cold): 6.0 / 5.0 / 5.5

Star-Heat (Hot/Average/Cold): 3.5 / 2.5 / 2.0

TCSPF-RES (Hot/Average/Cold): 7.934 / 6.834 / 7.373

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS50QDEHRA-SET
Quartz Hi Wall, 5kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 6kW

Consumption

COP: 4.05 / 4.02

EER: 4.03 / 4.00

HSPF-RES (Hot/Average/Cold): 5.067 / 4.302 / 3.670

Star-Cool (Hot/Average/Cold): 6.0 / 5.0 / 5.5

Star-Heat (Hot/Average/Cold): 3.5 / 2.5 / 2.0

TCSPF-RES (Hot/Average/Cold): 7.934 / 6.834 / 7.373

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.02kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS50QDEHRA

Indoor unit weight: 11.6kg

Outdoor unit model: 1U50WAEFRA

Outdoor unit weight: 43.2kg

Pipe length maximum: 25m

Pipe size gas: 12.7mm

Pipe size liquid: 6.35mm

Performance

Airflow: 265L/S

DC inverter:

Indoor sound pressure SPL: 47 / 43 / 37 / 33dBA

Outdoor sound power SWL: 66dBA

Outdoor sound pressure SPL: 53dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Hi Wall, 6kW

AS60QEEHRA-SET

AS60QEEHRA-SET, hero
Capacity

Cooling capacity (kW): 6kW

Heating capacity (kW): 7kW

Consumption

COP: 4.05 / 4.13

EER: 4.03 / 4.01

HSPF-RES (Hot/Average/Cold): 4.664 / 4.228 / 3.712

HSPFCOM (Hot/Average/Cold): 4.662 / 4.394 / 3.961

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.349 / 9.583 / 15.061

TCSPF-RES (Hot/Average/Cold): 6.369 / 5.849 / 6.136

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 816mm

Warranty

Parts and labour: 5 years

AS60QEEHRA-SET
Quartz Hi Wall, 6kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 6kW

Heating capacity (kW): 7kW

Consumption

COP: 4.05 / 4.13

EER: 4.03 / 4.01

HSPF-RES (Hot/Average/Cold): 4.664 / 4.228 / 3.712

HSPFCOM (Hot/Average/Cold): 4.662 / 4.394 / 3.961

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.349 / 9.583 / 15.061

TCSPF-RES (Hot/Average/Cold): 6.369 / 5.849 / 6.136

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.3kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS60QEEHRA

Indoor unit weight: 15.5kg

Outdoor unit model: 1U60KAEFRA

Outdoor unit weight: 37.5kg

Pipe length maximum: 25m

Pipe size gas: 12.70mm

Pipe size liquid: 6.35mm

Performance

Airflow: 345L/S

DC inverter:

Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA

Outdoor sound power SWL: 67dBA

Outdoor sound pressure SPL: 54dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: -15°C to +24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 816mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Hi Wall, 7kW

AS71QEEHRA-SET

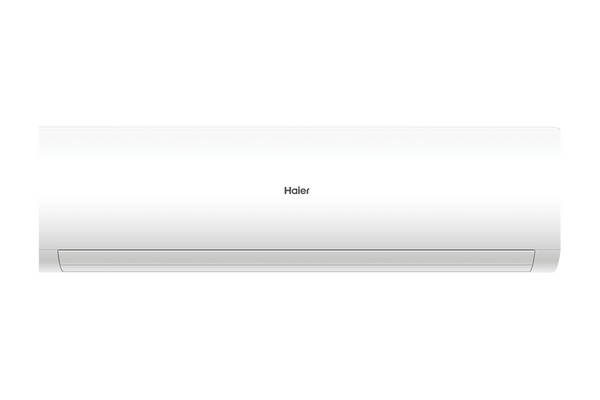

AS71QEEHRA-SET, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.51 / 3.49

EER: 3.51 / 3.49

HSPF-RES (Hot/Average/Cold): 4.935 / 4.242 / 3.635

Star-Cool (Hot/Average/Cold): 5.5 / 4.5 / 5.0

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-RES (Hot/Average/Cold): 7.036 / 6.138 / 6.646

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS71QEEHRA-SET
Quartz Hi Wall, 7kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.51 / 3.49

EER: 3.51 / 3.49

HSPF-RES (Hot/Average/Cold): 4.935 / 4.242 / 3.635

Star-Cool (Hot/Average/Cold): 5.5 / 4.5 / 5.0

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-RES (Hot/Average/Cold): 7.036 / 6.138 / 6.646

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.42kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS71QEEHRA

Indoor unit weight: 15.5kg

Outdoor unit model: 1U71WAEFRA

Outdoor unit weight: 44kg

Pipe length maximum: 25m

Pipe size gas: 12.70mm

Pipe size liquid: 6.35mm

Performance

Airflow: 310L/S

DC inverter:

Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA

Outdoor sound power SWL: 68dBA

Outdoor sound pressure SPL: 54dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Hi Wall, 9kW

AS90QFDHRA-SET

AS90QFDHRA-SET, hero
Capacity

Cooling capacity (kW): 9kW

Heating capacity (kW): 9.5kW

Consumption

COP: 3.57 / 3.54

EER: 3.40 / 3.37

HSPF-RES (Hot/Average/Cold): 4.481 / 3.908 / 3.392

Star-Cool (Hot/Average/Cold): 4.5 / 3.5 / 4.0

Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5

TCSPF-RES (Hot/Average/Cold): 6.078 / 5.394 / 5.746

Product dimensions

Indoor unit depth : 275mm

Indoor unit height: 365mm

Indoor unit width: 1316mm

Outdoor unit depth : 370mm

Outdoor unit height : 815mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

AS90QFDHRA-SET
Quartz Hi Wall, 9kW

Accessories

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 9kW

Heating capacity (kW): 9.5kW

Consumption

COP: 3.57 / 3.54

EER: 3.40 / 3.37

HSPF-RES (Hot/Average/Cold): 4.481 / 3.908 / 3.392

Star-Cool (Hot/Average/Cold): 4.5 / 3.5 / 4.0

Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5

TCSPF-RES (Hot/Average/Cold): 6.078 / 5.394 / 5.746

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.55kg

Self diagnostics:

Sleep mode:

UV Protect:

Installation

Indoor unit model: AS90QFDHRA

Indoor unit weight: 21.5kg

Outdoor unit model: 1U90QADFRA

Outdoor unit weight: 51kg

Pipe length maximum: 25m

Pipe size gas: 15.88mm

Pipe size liquid: 6.35mm

Performance

Airflow: 320L/S

DC inverter:

Indoor sound pressure SPL: 48 / 42 / 36 / 30dBA

Outdoor sound power SWL: 69dBA

Outdoor sound pressure SPL: 56dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 275mm

Indoor unit height: 365mm

Indoor unit width: 1316mm

Outdoor unit depth : 370mm

Outdoor unit height : 815mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation
