Features

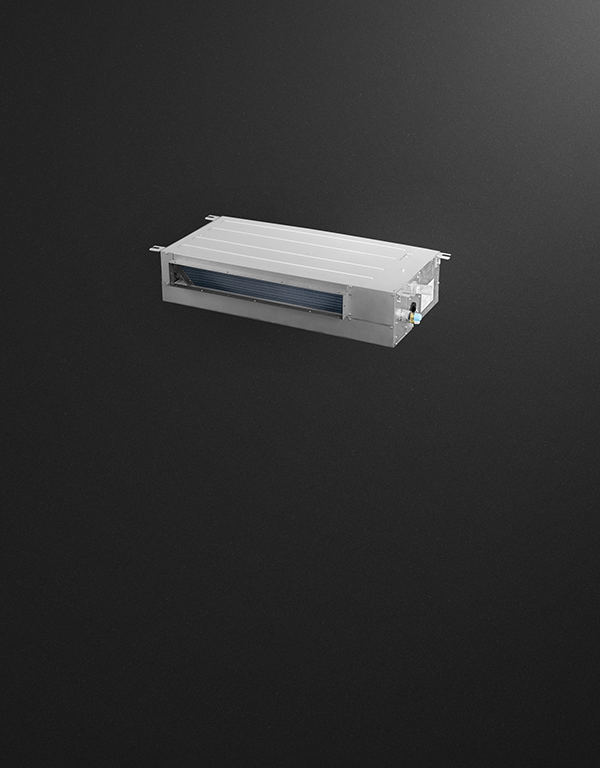

Slim Design
For a minimal design solution, this indoor unit fits discreetly into your interior. With a slim profile, it is also ideal for installation in shallow ceiling cavities, such as between floors in multistorey buildings.
Control from Anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
Comfort in All Conditions
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment that feels cooler – all while using less energy than Cool mode.
Return Air Choices
Clever design allows the rear return air to be easily converted to bottom return air to suit the installation.
Technologies
Super Match multi split system
The Super Match outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.
UV Protect
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne pathogens, delivering clean air to your room.*
*Independent testing has found 91.47% elimination of the H3N2 virus in a 30m2 closed room and 92.78% of Staphylococcus aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed.
DC inverter technology
With 3D Direct Current (DC) inverter technology, Super Match multi split air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.
Anti-corrosion coating
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
R32 refrigerant
This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has 33% the global warming potential of R410A.
Specifications

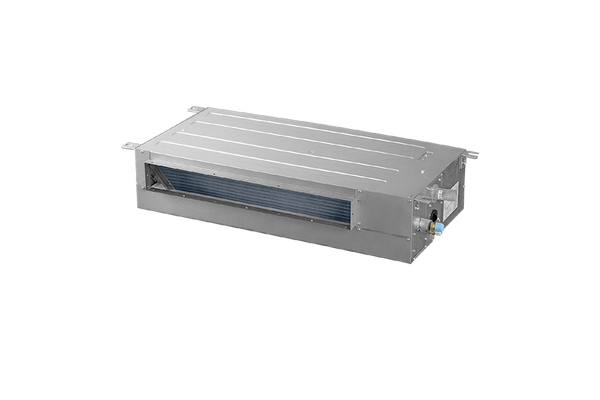

Slim Ducted, 2.5kW
AD25S2PS1FA
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 16kg
Width: 850mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-E17A (wired)
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Features
24 Hour timer:
Blue fin coils:
UV Protect:
Wi-Fi controller compatible:
Installation
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 530m3/h
Indoor sound pressure SPL: 29 / 28 / 25dBA
R32 Refrigerant:
Sound power: 51dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 16kg
Width: 850mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Installation & User Guide
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Slim Ducted (R32), GeneralFiles-HaierHVACAU
Slim Ducted, 3.5kW
AD35S2PS1FA
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 4kW
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 16kg
Width: 850mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-E17A (wired)
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 4kW
Features
24 Hour timer:
Blue fin coils:
Wi-Fi controller compatible:
Installation
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 600m3/h
Indoor sound pressure SPL: 33 / 28 / 25dBA
R32 Refrigerant:
Sound power: 53dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 16kg
Width: 850mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Installation & User Guide
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Slim Ducted (R32), GeneralFiles-HaierHVACAU
Slim Ducted, 5kW
AD50S2PS1FA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 22kg
Width: 1170mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-E17A (wired)
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Features
24 Hour timer:
Blue fin coils:
UV Protect:
Wi-Fi controller compatible:
Installation
Pipe size gas: 9.7mm
Pipe size liquid: 6.35mm
Performance
Airflow: 900m3/h
Indoor sound pressure SPL: 36 / 34 / 32dBA
R32 Refrigerant:
Sound power: 54dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 22kg
Width: 1170mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Installation & User Guide
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Slim Ducted (R32), GeneralFiles-HaierHVACAU
Slim Ducted, 7kW
AD71S2PS1FA
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 7.5kW
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 25.2kg
Width: 1170mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-E17A (wired)
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 7.5kW
Features
24 Hour timer:
Blue fin coils:
UV Protect:
Wi-Fi controller compatible:
Installation
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
Airflow: 1000m3/h
Indoor sound pressure SPL: 46 / 44 / 42dBA
Sound power: 57dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 420mm
Height: 185mm
Net weight: 25.2kg
Width: 1170mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Installation & User Guide
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Slim Ducted (R32), GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
