Product Set
Outdoor Unit
Indoor Unit
Controller
Features
More efficient heating
600 Series QP is our most efficient model in terms of heating performance, meeting the requirements of many rebate and energy efficiency schemes.
Even airflow
Enjoy an even temperature throughout the room. 3D Airflow directs air horizontally as well as vertically, for consistently spread heating and cooling.
Turbo cooling
With the Turbo function the motor and fan work at a higher frequency, so you can enjoy a cool room within a much shorter time.
Easy installation
Designed for easy installation, the 600 Series QP comes with simple positioning specifications. The control board and motor are also easily accessible for fast maintenance.
Technologies
UV PROTECT
UV Protect helps to deliver cleaner air to your room using Health mode, with built-in LED UV Pro lights that help to kill airborne pathogens.*
*Independent testing on a 2.6kW model equivalent to AS25QCEHRA has found 91.47% elimination of the H3N2 virus in a 30m2 closed room and 92.78% of Staphylococcus aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed. Performance claims are specific to the tested model and equivalent kW models.
COANDA PLUS AIRFLOW
Coanda Plus Airflow technology sends warm or cool air further, for maximum comfort throughout the room.
WI-FI
We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioner from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.
Specifications

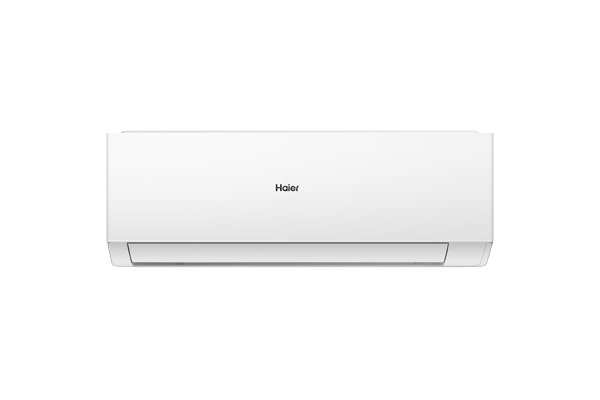

600 Series QP Hi Wall 2.5kW
AS25QCFHRA
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3.2kW
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HJ
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3.2kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 03 / 10 / 2029
Dry mode:
MEPS approved:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS25QCFHRA
Indoor unit weight: 10kg
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 195L/S
Indoor sound pressure SPL: 39-19dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power phase: Single phase
Power supply: 1/220-240/50
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
600 Series QP (Heating and Cooling), InstallationManuals-HaierHVACAU
600 Series QP Hi Wall 3.5kW
AS35QCFHRA
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HJ
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 03 / 10 / 2029
Dry mode:
MEPS approved:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS35QCFHRA
Indoor unit weight: 10kg
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 210L/S
Indoor sound pressure SPL: 40-21dBA
Working temperature cooling: -10°C to 46°C
Working temperature heating: -15°C to 24°C
Power requirements
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
600 Series QP (Heating and Cooling), InstallationManuals-HaierHVACAU
600 Series QP Hi Wall 5.0kW
AS50QDFHRA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HJ
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 03 / 10 / 2029
Dry mode:
MEPS approved:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS50QDFHRA
Indoor unit weight: 11.6kg
Pipe size gas: 12.7mm
Pipe size liquid: 6.35mm
Performance
Airflow: 265L/S
Indoor sound pressure SPL: 42-25dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power supply: 1/220-240/50
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
600 Series QP (Heating and Cooling), InstallationManuals-HaierHVACAU
600 Series QP Hi Wall 7.1kW
AS71QEFHRA
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1106mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HJ
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 03 / 10 / 2029
Dry mode:
MEPS approved:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS71QEFHRA
Indoor unit weight: 15.5kg
Pipe size gas: 12.70mm
Pipe size liquid: 6.35mm
Performance
Airflow: 310L/S
Indoor sound pressure SPL: 46-27dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power phase: Single phase
Power supply: 1/220-240/50
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1106mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
600 Series QP (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
600 Series QP (Heating and Cooling), InstallationManuals-HaierHVACAU
