Product Set

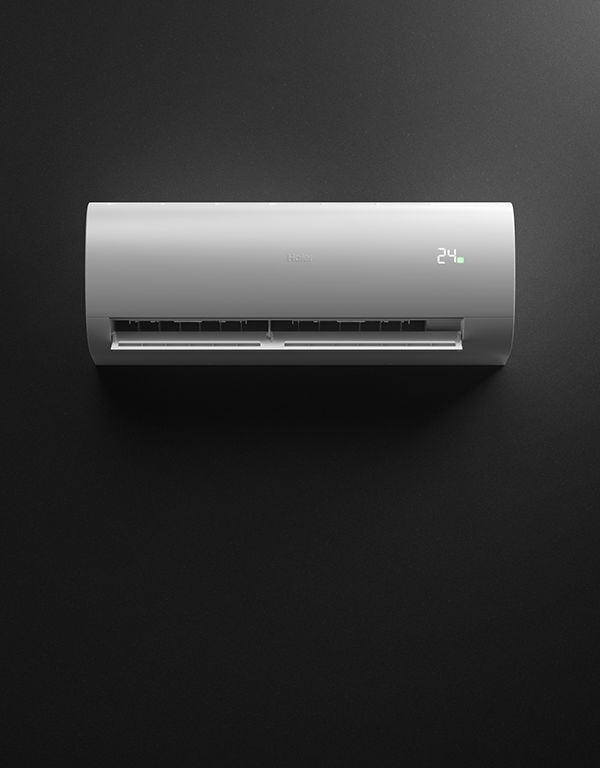

Indoor Unit
Controller
Features
3D Airflow
For even comfort, 3D Airflow directs air horizontally and vertically to evenly distribute air throughout the room, helping reduce cold corners and maintain consistent temperatures.
Turbo cooling
With Turbo mode, the motor and fan operate at a higher frequency to quickly cool the room, ideal for fast relief on hot days.
Long-reach airflow
With advanced fan and motor technology, air is distributed over long distances, reaching up to 20 metres with the 7.1kW model.
Easy installation
Designed for easy installation, Haier 500 Series systems feature simple positioning requirements, with accessible control boards and motors for efficient servicing and maintenance.
Technologies
COANDA PLUS AIRFLOW
Coanda Plus Airflow technology directs warm or cool air across the room, helping deliver consistent temperature coverage from wall to wall.
SMART CONTROL
We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioner from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.
Specifications

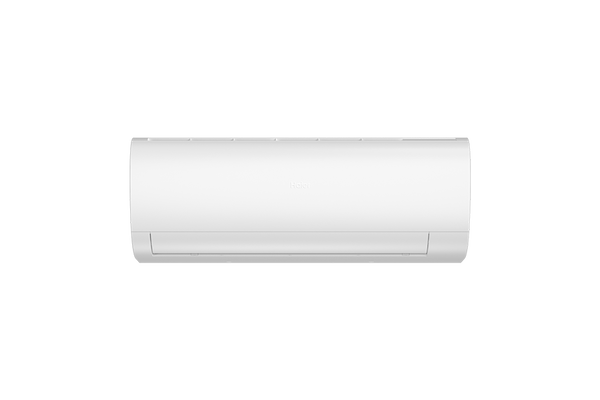

500 Series Hi Wall 2.0kW Indoor Unit
AS20PFHRA
Capacity
Cooling capacity (kW): 2kW
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Accessories (included)
SmartHQ WiFi control:
Standard controller: Wireless
Capacity
Cooling capacity (kW): 2kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 05 / 03 / 2031
Dry mode:
Infrared remote control:
MEPS approved:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS20PFHRA
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
500 Series (Heating and Cooling), InstallationManuals-HaierHVACAU
500 Series Hi Wall 2.5kW Indoor Unit
AS25PFHRA
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3.2kW
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: wireless
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3.2kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 05 / 03 / 2031
Dry mode:
MEPS approved:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS25PFHRA
Indoor unit weight: 8.5kg
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 195 / 175 / 150
Indoor sound pressure SPL: 38 / 34 / 30 / 24dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C ~ 24°C
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
500 Series (Heating and Cooling), InstallationManuals-HaierHVACAU
500 Series Hi Wall 3.5kW Indoor Unit
AS35PFHRA
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: wireless
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 05 / 03 / 2031
Dry mode:
MEPS approved:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS35PFHRA
Indoor unit weight: 10kg
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 195 / 175 / 150
Indoor sound pressure SPL: 40 / 36 / 32 / 25dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15℃ ~ 24℃
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 307mm
Indoor unit width: 875mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
500 Series (Heating and Cooling), InstallationManuals-HaierHVACAU
500 Series Hi Wall 5.0kW Indoor Unit
AS50PFHRA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.3kW
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 318mm
Indoor unit width: 975mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: wireless
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.3kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 05 / 03 / 2031
Dry mode:
MEPS approved:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS50PFHRA
Indoor unit weight: 11.7kg
Pipe size gas: Pipe size 12.70mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 265 / 215 / 170
Indoor sound pressure SPL: 43 / 39 / 37 / 28dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15℃ ~ 24℃
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 318mm
Indoor unit width: 975mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure (English)
500 Series (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide (English)
500 Series (Heating and Cooling), InstallationManuals-HaierHVACAU
500 Series Hi Wall 7.1kW Indoor Unit
AS71PFHRA
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: wireless
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 05 / 03 / 2031
Dry mode:
MEPS approved:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS71PFHRA
Indoor unit weight: 15.5kg
Pipe size gas: Pipe size 12.70mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 310 / 270 / 225
Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15℃ ~ 24℃
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Warranty
Parts and labour: 5 years
