Product Set
Indoor Unit
Controller
Features

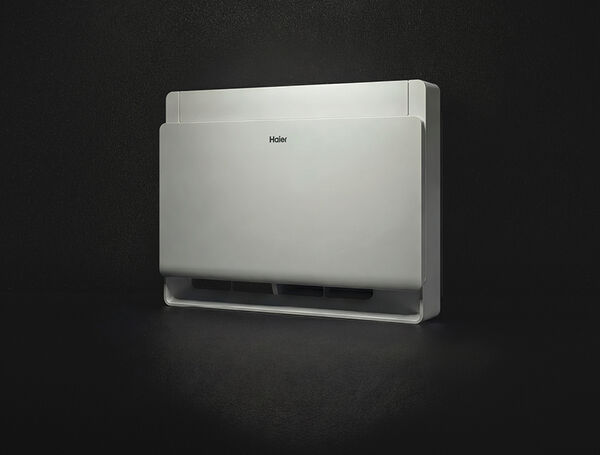

Compact and sleek design
A stylish floor console with a compact footprint ideal for rooms with limited wall space. The Red Dot 2025 award winning design blends clean lines with everyday comfort.
Optimised heating efficiency
V-shaped evaporator design enhances heat transfer performance for efficient warmth in colder months.
Installation made flexible
Designed for versatile installation, the floor console can be standard mounted, fitted with a skirting board, or recessed into the wall for a clean, integrated finish.
Smart comfort control
SmartHQ™ app control gives you comfort from anywhere at any time using your phone or voice assistants including Google Home and Amazon Alexa for easy everyday convenience.
Technologies
AUTOMATIC WARMTH
The 10°C heating function helps maintain a comfortable indoor temperature during colder seasons. When the room temperature drops below ten degrees, the system gently warms the space to prevent excessive cold. Ideal for maintaining background warmth overnight or in unoccupied rooms while conserving energy.
BALANCED AIRFLOW
Dual guide airflow technology combines vertical and horizontal movement to create balanced comfort throughout the room. In cooling mode it helps reduce direct drafts, while in heating mode warm air flows evenly across the floor for consistent temperature and all round comfort.
MOLD PROOF CARE
The mold proof function gently heats and dries the indoor unit after use. This helps prevent moisture build up inside the system, reducing the risk of mold and bacterial growth. It keeps the heat pump dry and clean, supporting healthier air quality and longer lasting performance.
UVC PLUS AIR CARE
UVC Plus Air Care helps purify indoor air by using ultraviolet light and natural oxidative processes to neutralise odours and harmful particles. The system requires no filter replacements or consumables, supporting cleaner air and long term use without additional maintenance or environmental impact.
Specifications

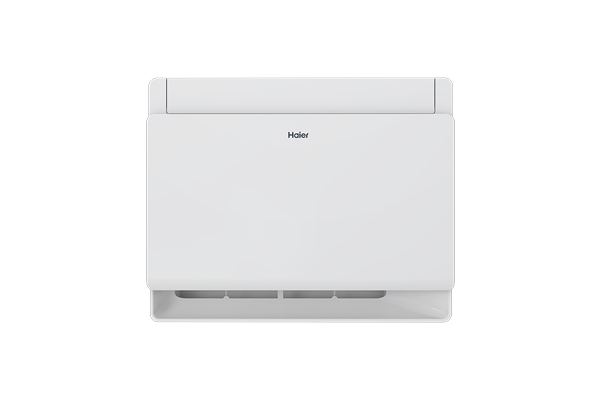

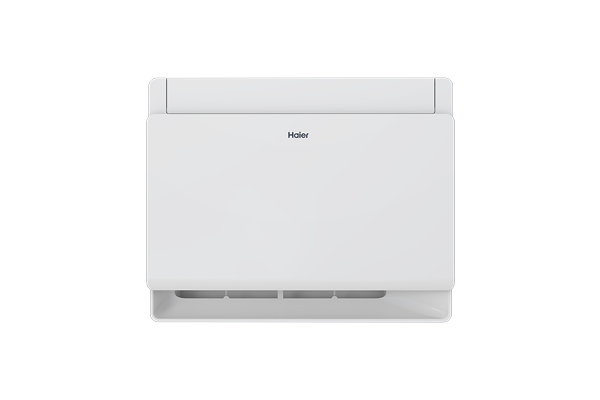

Floor Console Indoor, 5kW
AF50DBAHRA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 600mm
Indoor unit width: 750mm
Net weight: 14kg
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: Wireless
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Built-in Wi-Fi smart control:
Concealed LED display:
Cyber Security updates until: 30 / 03 / 2031
Dry mode:
Google Home:
Heat pump:
Infrared remote control:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Self diagnostics:
Sleep mode:
Smart Appliance:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AF50DBAHRA
Indoor unit weight: 14kg
Pipe size gas: 12.7mm
Pipe size liquid: 6.35mm
Performance
Airflow: 225L/S
Indoor sound pressure SPL: 44/38/33dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power phase: Single phase
Power supply: 1/220-240/50
Supply frequency: 50HzHz
Supply voltage: 220-240VV
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 600mm
Indoor unit width: 750mm
Net weight: 14kg
Warranty
Parts and labour: 5 years
