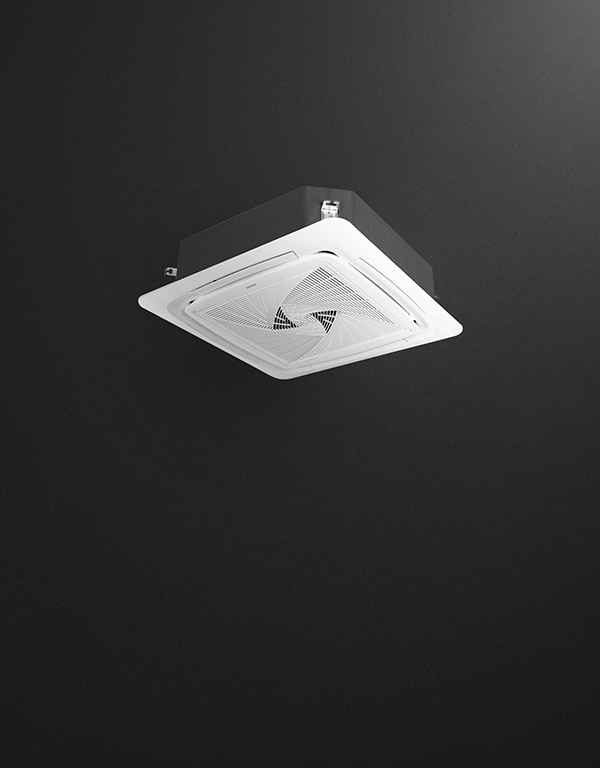

Round Way Cassette (R32), hero

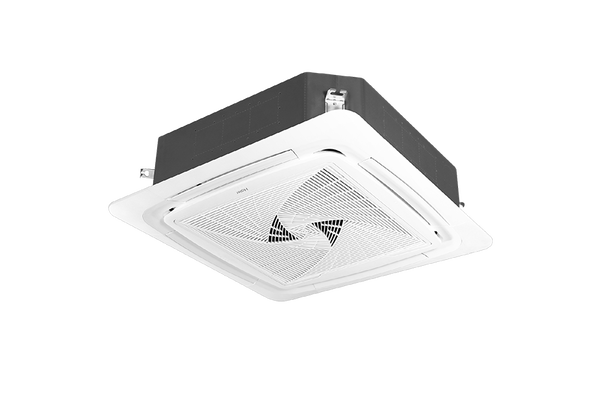

Round Way Cassette (R32)

Cassette Systems: Smart Power

Get a quote

Product Set

Outdoor Unit
Indoor Unit
Indoor Unit

Features

thermometer

Round Way Design

The unique round way air outlet supplies airflow in all directions for optimal temperature distribution throughout your space.

air

Fresh Air Inlet

Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity.

wifi

Control from Anywhere

Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.

volume_mute

Quiet Operation

A helix fan blade and diffuser are designed for quiet operation.

Technologies

Smart Power

Smart Power

Haier’s Smart Power air conditioning systems provide an effective heating and cooling solution. The system is made up of: an outdoor unit in a suitable location, an indoor cassette unit to deliver airflow, and a controller for the air conditioning system.

DC Inverter Technology

DC Inverter Technology

With 3D Direct Current (DC) inverter technology, Super Match air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.

Anti-corrosion coating

Anti-corrosion coating

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.

Specifications

Round Way Cassette R32, 7.1kW

ABH071HS5FA-SET

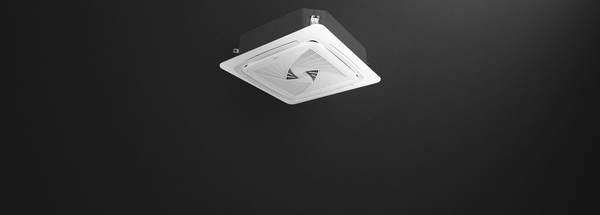

ABH071HS5FA-SET, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.81

EER: 3.43

HSPF-RES (Hot/Average/Cold): 4.330/3.927/3.448

HSPFCOM (Hot/Average/Cold): 4.326/4.078/3.679

Star-Cool (Hot/Average/Cold): 2.5/2.0/1.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.41/4.37/4.6

TCSPF-RES (Hot/Average/Cold): 4.140/3.762/3.797

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 246mm

Indoor unit width: 840mm

Net weight: 31kg

Outdoor unit depth : 372mm

Outdoor unit height : 760mm

Outdoor unit width: 920mm

Warranty

Parts and labour: 5 years

ABH071HS5FA-SET
Round Way Cassette R32, 7.1kW

Accessories

Central controller: Optional

IR Controller:

Standard controller: YR-HQS01

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.81

EER: 3.43

HSPF-RES (Hot/Average/Cold): 4.330/3.927/3.448

HSPFCOM (Hot/Average/Cold): 4.326/4.078/3.679

Star-Cool (Hot/Average/Cold): 2.5/2.0/1.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.41/4.37/4.6

TCSPF-RES (Hot/Average/Cold): 4.140/3.762/3.797

Features

360° airflow:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Compressor type: Twin rotary

Concealed LED display:

Condensate pump:

Electronic expansion device:

Fresh air connection:

Infrared remote control:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 1.7kg

Standard panel: PB-950KB

Installation

Indoor unit model: ABH071H5ERG

Indoor unit weight: 31kg

Outdoor unit model: 1U71S2SS5FA

Outdoor unit weight: 60kg

Pipe length maximum: 50m

Pipe size gas: 15.9mm

Pipe size liquid: 9.52mm

Performance

Airflow: 378

Indoor sound pressure SPL: 35-26dBA

Outdoor sound power SWL: 64dBA

Outdoor sound pressure SPL: 62dBA

R32 Refrigerant:

Sound pressure: 47dBA

Power requirements

AMP draw: 16A

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 246mm

Indoor unit width: 840mm

Net weight: 31kg

Outdoor unit depth : 372mm

Outdoor unit height : 760mm

Outdoor unit width: 920mm

Warranty

Parts and labour: 5 years
